Fixed CurrentIntelligent Screw Driver TCA
Torque Range：0.1-200Nm
Danikor’s electric screwdriver with torque control has both torque and angle control. The built-in transducer measures torque and angle with high accuracy, achieving high-precision tightening and ensuring the consistency of tightening torque. It provides real-time feedback of relevant data and offers data traceability, making it suitable for both manual and automated industrial assembly lines. This helps provide users with higher quality products.
Application Industry
New energy vehicles
Automotive electronics
Automotive parts
3c
Communication
Home appliances
Medical care
Request a Quote
Product Advantages
Accuracy
Standard deviation accuracy over the full torque range.
Accuracy test of hard& Soft connection conforms to ISO5393 standard.
Self-developed high precision algorithm control
Fast
Flexibility to respond to applications with different requirements.
Guarantee tightening quality Optional higher order strategy:clamping torque control.
Reduce setup time between different tightening requirements.
Automatically switch between different Psets
Intelligent
Record and monitor the data of full tightening process.
Real-time data upload
Real-time docking with MES system.
Data storage
You can hold more quantities and filter the number of results that are analyzed for a given program or time period.
Data traceability
Multiple curves are superimposed to facilitate depth analysis.
Errorproofing
Monitoring of abnormal tightening process
All-round data monitoring, timely detection of floating locks, sliding teeth,wrong and missing, gasket missing and other unqualified tightening situation.
Assembly process authority management
In the debugging interface, you need to enter the password to set the strategy and program.
Job planning and superposition protection
If Job batch is inconsistent, it is required to enter password for intervention.
Convenient
Automatically learn
Automatically recommend the reference parameter range, and quickly build the tightening strategy.
Superior human-computer interaction
Visual OLED display screen, 3-color light (such as NG red), buzzer and front light is convenient for operators to use.
Multiple startup forms
It can be handheld or fixed with machine, and handheld can be pressed down,triggered or remotely activated.
Rapid expansion port
Threaded external connection for quick matching vacuum suction nozzle and a fixed structure.
Multiple communication forms
RS485 RTU, TCP/IP open Protocol, extended digital I/O interface.
Multiple functions optional
Optional teaching pendant or communication module, real-time data viewing and parameter setting.

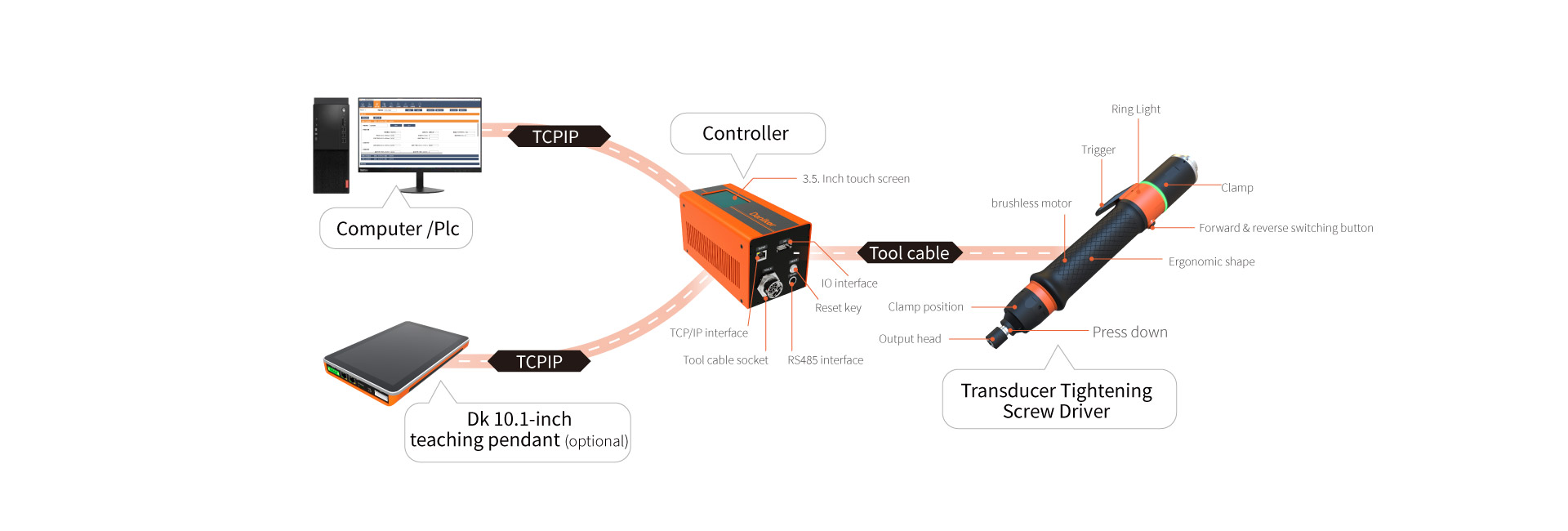

Product Structure

Product Parameters
Model Max torque/Nm Max speed/rpm Grip diameter /mm Design life MTTF Bit quick connector Starting mode Screw driver controller Screw driver cable
PTT-DSH-7000M-34-H1D-000-G3 0.14-0.7 3000 34 ＞10 million ＞1 million Hex 1/4" Pushed/ Pressed/ Remote OPT-STC-C1- DC1-V3-500W / OPT-STC-C1- DC2-V3-500W OPT-SCT-00- V3-DC-05
PTT-DSH-0012N-34-H1D-000-G3 0.24-1.2 1500 34  Hex 1/4"
PTT-DSH-0020N-37-H1D-000-G3 0.4-2 3000 37  Hex 1/4"
PTT-DSH-0040N-37-H1D-000-G3 0.8-4 1500 37  Hex 1/4"
PTT-DSH-0080N-37-H1D-000-G3 1.6-8 960 37  Hex 1/4"
PTT-DSH-0120N-37-H1D-000-G3 2.4-12 700 37 Hex 1/4"
PTT-DSH-0200N-37-S2D-000-G3 4-20 300 37 S 3/8
